Aperçu ProduitsMaille de câble de balustrade304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase

304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase

304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase
304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase
304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase 304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase
Informations de base
Lieu d'origine: Hebei
Nom de marque: Yuntong
Certification: CE , SGS
Numéro de modèle: YT - FF
Quantité de commande min: 10 m²
Détails d'emballage: Film de paquet pour chaque pièce, plusieurs pièces emballées dans 1 carton
Délai de livraison: 5-8 jours de travail
Conditions de paiement: T / T, Western Union, Paypal
Capacité d'approvisionnement: 300 mm / semaine
Contactez
Nom: 304 316 Mesh de câble de clôture en câble en fil en métal en acier inoxydable pour escalier Corde: 1,2 mm à 4,0 mm
Corde: 7 x 7, 7 x 19, 1 x 19 Matériel: Acier inoxydable 304, 316, 316L
Orientation du maillage: Horizontal, vertical Forme de maille: Rhombus, diamant
Fini: Bains à ultrasons / oxyde noir Application: Sécurité d'escalier, remplissage de balustrade, clôturant la sécurité
Taille de panneau: Personnalisé en largeur et en longueur Angle de maille: 60 degrés
Style de maille: X-tendus en type ferruleux
Mettre en évidence:

stainless steel wire rope fence

,

316 stainless steel cable mesh

,

staircase balustrade wire mesh

304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase
Product Specifications
Material: Stainless Steel 304, 316, 316L
Wire Rope: 1.2 mm to 4.0 mm
Rope Constructions: 7 x 7, 7 x 19, 1 x 19
Finished: Ultrasonic Bath / Black Oxide
Mesh Orientation: Horizontal, Vertical
Product Name: Inox X-tend Cable Mesh Webnet
Mesh Shape: Rhombus, Diamond
Application: Staircase Security, Balustrade Infill, Railing Safety
Panel Size: Customized in width and length
Mesh Angle: 60 degree
Mesh Style: X-tend in Ferruled Type
Hand-Woven Security Fence Steel Rope Fence
High-quality stainless steel cable mesh designed for bridge railings and balustrade applications.
Wire Rope Mesh Specifications
Hole Size (Opening) 1.2MM(3/64) (7 x 7) 1.6MM(1/16) (7 x 7) 2.0MM(5/64) (7 x 7) 2.4MM(3/32) (7 x 7) 3.2MM(1/8) (7 x 19)
20 x 35mm YT-1235
25 x 42mm YT-1225 YT-1625
30 x 52mm YT-1230 YT-1630 YT-2030
35 x 60mm YT-1235 YT-1635 YT-2035
38 x 66mm YT-1238 YT-1638 YT-2038 YT-2438
40 x 69mm YT-1240 YT-1640 YT-2040 YT-2440 YT-3040
50 x 86mm YT-1250 YT-1650 YT-2050 YT-2450 YT-3050
60 x 104mm YT-1260 YT-1660 YT-2060 YT-2460 YT-3060
70 x 120mm YT-1270 YT-1670 YT-2070 YT-2470 YT-3070
76 x 131mm YT-1276 YT-1676 YT-2076 YT-2476 YT-3076
80 x 138mm YT-1280 YT-1680 YT-2080 YT-2480 YT-3080
90 x 154mm YT-1290 YT-1690 YT-2090 YT-2490 YT-3090
100 x 173mm YT-12100 YT-16100 YT-20100 YT-24100 YT-30100
120 x 206mm YT-12120 YT-16120 YT-20120 YT-24120 YT-30120
Material Composition
Grade Chemical Composition (%)
SS304 C:≤0.07, Si:≤1.0, Mn:≤2.0, Cr:17.0-19.0, Ni:8.0-11.0, S:≤0.03, P:≤0.035
SS316 C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5
SS316L C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0
Recommended Balustrade Infill Wire Mesh
Material Cable Diameter Hole Size Normal Break
SS304/316/316L 1/16" (1.6MM) 2.5" x 2.5" 480 LBS
SS304/316/316L 1/16" (1.6MM) 2" x 2" 480 LBS
SS304/316/316L 5/64" (2.0MM) 2.5" x 2.5" 676 LBS
SS304/316/316L 5/64" (2.0MM) 2" x 2" 676 LBS
SS304/316/316L 5/64" (2.0MM) 3" x 3" 676 LBS

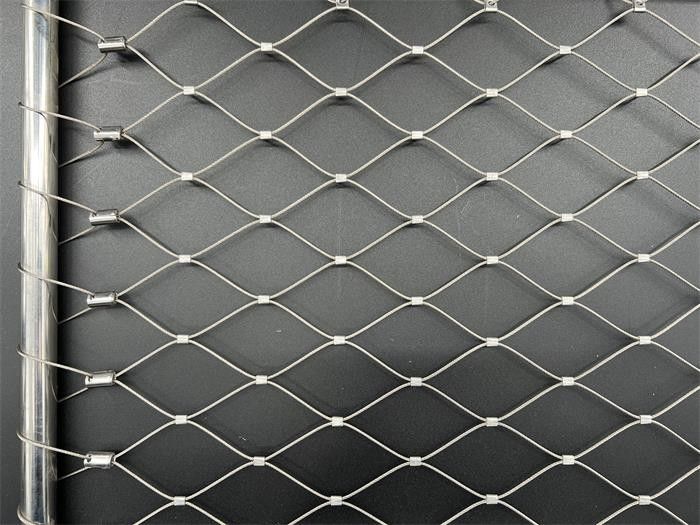

304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase 0
Our Balustrade Infill Wire Rope Mesh is manufactured from high-grade stainless steel cables (material class 1.4401, AISI316/AISI316L). The X-tend type cable mesh is custom manufactured to suit your balustrade, railing or architectural application. The mesh can be applied in either vertical or horizontal orientation, depending on the balustrade or railing design. Diagonal and irregular shapes can also be supplied.
Wire Rope Mesh by Yuntong is made from stainless steel wires with skin-like characteristics. It can form a plane surface but can also be tensioned into three-dimensional forms featuring funnel-like, cylindrical or spherical shapes.

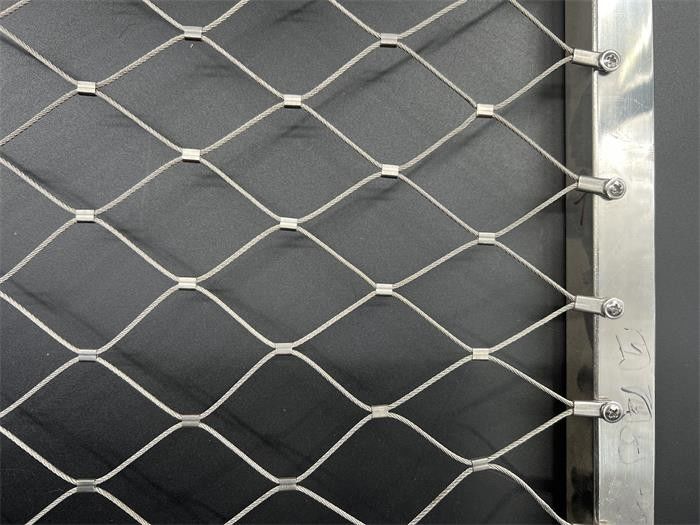

304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase 1
X-TEND Stainless steel mesh is light, robust, and transparent. High-quality stainless steel cables and pressed ferrules create a load-bearing and flexible structure. The curvature in the opposite direction of the stainless steel cables creates exceptionally robust characteristics - the mesh can even stand up to heavy loads.

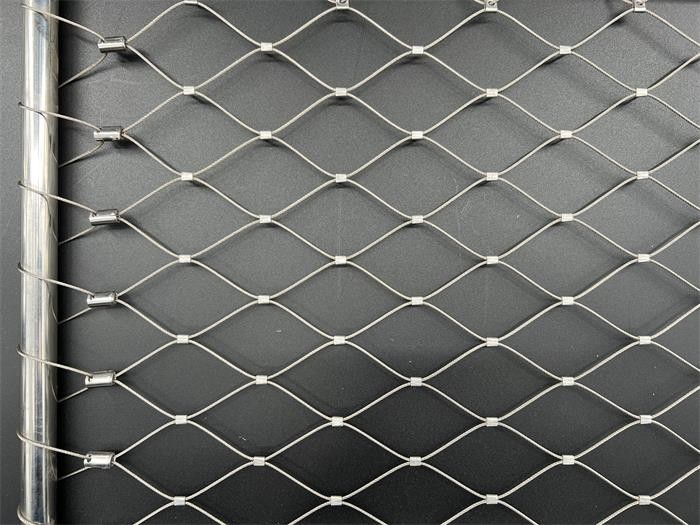

304 316 Stainless Steel Wire Rope Fence Cable Mesh for Staircase 2
