Name: Stainless Steel 50mm X Tend Cable Mesh In Indoor Stair Railings Protection
Brand: Anping Yuntong Metal Wire Mesh Co.,Ltd
SKU: YT - FF
Price: 26.00 USD
Availability: InStock

Stainless Steel 50mm X Tend Cable Mesh In Indoor Stair Railings Protection

Informations de base

Lieu d'origine:	Hebei
Nom de marque:	Yuntong
Certification:	CE , SGS
Numéro de modèle:	YT - FF

Quantité de commande min:	10 m²
Prix:	USD 2-50
Détails d'emballage:	Film de paquet pour chaque pièce, plusieurs pièces emballées dans 1 carton
Délai de livraison:	5-8 JOURS OUVRABLES
Conditions de paiement:	T/T, Western Union, paypal
Capacité d'approvisionnement:	300 mm / semaine

Contactez

Nom du produit:

Treillis de câbles X-tend

Mot clé:

filetage de câbles en acier

Câble métallique:

1,2 mm à 4,0 mm

Type de maillage:

Ferraillé

Matériel:

AISI316 de haute qualité

Corde:

7 x 7, 7 x 19

Fini:

Baignoire à ultrasons, oxyde noir

Feuille de panneau:

Personnalisé en largeur et en longueur

Mettre en évidence:

stainless steel indoor stair railings

50mm X Tend cable mesh

stair railing protection cable mesh

Stainless Steel 50mm X Tend Cable Mesh In Indoor Stair Railings Protection

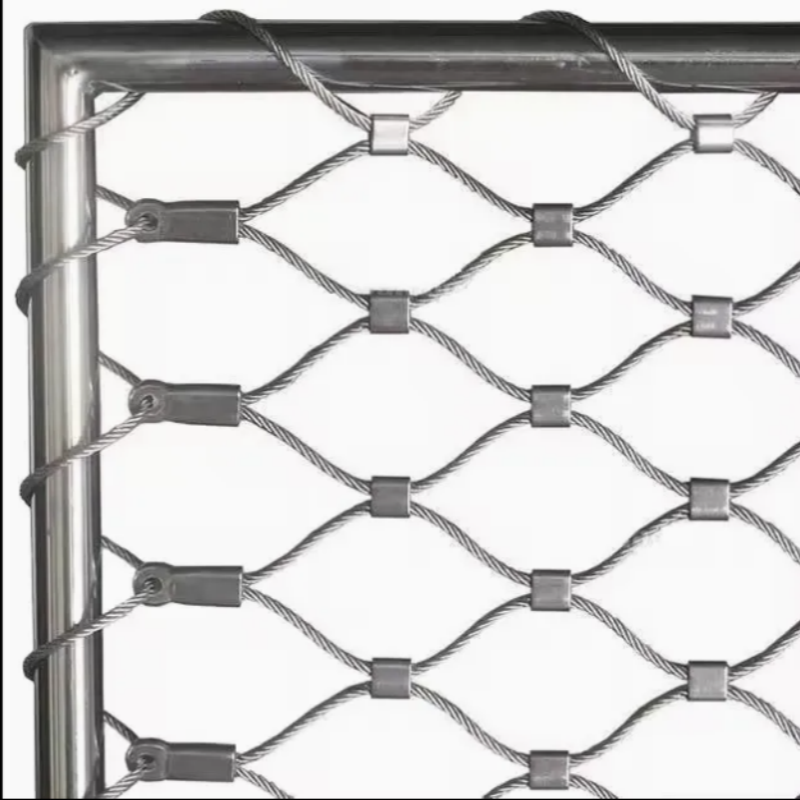

X-TEND cable mesh needs to be secured in place with either border cables or perimeter tubes.

These transfer the force exerted around the complete perimeter of the flexible mesh panel to the supporting structure, balustrade or railing. Border cables deflect in response to this force adding unique and elegant form to the application. Where aesthetics demand a more linear or regular mesh panel free of deflection, then the mesh can be laced directly to a rod or tube frame.

We provides balustrade assemblies with the cable mesh preinstalled on stainless steel frames. Webnet Mesh is available in rectangular or rhomboid form in different sizes and mesh widths. Special assembly kits make installation easy.

X Tend Cable Mesh Specifications Sheet :

Hole Size (Opening)	1.2MM(3/64) (7 x 7 )	1.6MM(1/16) (7 x 7 )	2.0MM(5/64) (7 x 7 )	2.4MM(3/32) (7 x 7 )	3.2MM(1/8) (7 x 19 )
20 x 35mm	YT-1235
25 x 42mm	YT-1225	YT-1625
30 x 52mm	YT-1230	YT-1630	YT-2030
35 x 60mm	YT-1235	YT-1635	YT-2035
38 x 66mm	YT-1238	YT-1638	YT-2038	YT-2438
40 x 69mm	YT-1240	YT-1640	YT-2040	YT-2440	YT-3040
50 x 86mm	YT-1250	YT-1650	YT-2050	YT-2450	YT-3050
60 x 104mm	YT-1260	YT-1660	YT-2060	YT-2460	YT-3060
70 x 120mm	YT-1270	YT-1670	YT-2070	YT-2470	YT-3070
76 x 131mm	YT-1276	YT-1676	YT-2076	YT-2476	YT-3076
80 x 138mm	YT-1280	YT-1680	YT-2080	YT-2480	YT-3080
90 x 154mm	YT-1290	YT-1690	YT-2090	YT-2490	YT-3090
100 x 173mm	YT-12100	YT-16100	YT-20100	YT-24100	YT-30100
120 x 206mm	YT-12120	YT-16120	YT-20120	YT-24120	YT-30120

Generally, there are two types of buckle: one is closed-type buckle and the other is open-type buckle. Features of closed type: the mesh has multiple steel wire ropes combined together, and the closed buckle is relatively stronger, but there are multiple joints at one end of the closure. Open-type features: the whole mesh can be made with a steel wire rope, which is convenient for installation and has a beautiful overall effect.
